Honda CBX 1000: The wide one

Bike Profile

Jim Merrick's immaculate Honda CBX.

Story and photos: Jim Scaysbrook • Technical assistance: Jim Merrick, Tom Battison.

Faced with stiffening opposition from all fronts for the title of King of the Road, Honda went for the coup d’état.

December 1977. Selected journalists have been invited to Japan by the Honda Motor Company to witness the unveiling of a truly remarkable motorcycle. Nine years previously, the same company had gob-smacked the motorcycling world with the CB750 – perhaps the most significant motorcycle ever produced, and one that turned the company’s fortunes around. But in the ensuing near-decade, the CB750, for all its innovation, quality and ground-breaking features, had been under attack from a growing band of imitators and pretenders to the throne, notably the Kawasaki Z1, the Suzuki GS750, and the Yamaha XS1100. The revamped Honda CB750F of 1976 failed to turn the tide in Honda’s favour as buyers quickly saw through the veneer of what was essentially the original powerplant in fancy clothing. Clearly a king-hit was needed, and quickly.

That king-hit was the CBX 1000-Z – six cylinders, and 1047 cc with a genuine 225 km/h (140 mph) top speed. The across-the-frame six layout was hardly surprising given the string of world championships garnered by Mike Hailwood on the factory RC 166 250 and 350 GP racers, but the factory had succeeded in building very acceptable social manners into the package as well. There was more than a family resemblance – the engineer behind the CBX project was Shoichiro Irimajiri – the same man who had designed the works 250 and 297 sixes, the 23,000 rpm 50 cc twin and the 5-cylinder 125. The first lines were actually drawn as far back as late 1975, and within 2 years the concept was in metal. The early designs released to the media showed a very different animal to what ultimately arrived. What was termed the final prototype actually utilized a conventional full cradle frame with styling borrowed from the CB400T twin.

Mind you, the concept of a six-cylinder road bike was anything but new. As far back as 1972, Benelli had trumpeted their new 750 Sei – the first production six in the world – although it took two years to reach production. The Benelli engine bore an uncanny resemblance to the Honda CB500, breathing through three 29 mm Dell-Orto carburettors with a separate exhaust pipe for each cylinder. By 1979 the engine had grown from 747 cc to 906 cc.

When it finally appeared in the flesh, the Honda design had changed radically from the early concepts. Notably, the engine, canted forwards at 30º, acted as a stressed chassis member, hanging from the top frame tubes and making the task of routing the exhaust pipes a lot easier. Rather than follow the Benelli six-into-six practice, the CBX used a pair of three-into-one pipes with the collector boxes under the gearbox. The mufflers were very similar in shape to those on the later CB900F, but of a larger diameter, and were prone to a very short lifespan once condensation and the resultant rust set in. The problem was due to overlapping internal components preventing the moisture from draining adequately. To remove the carburettors, or even the throttle cables, the procedure was to remove the top engine bolts and tilt the whole motor forward, a relatively straightforward process.

It looked enormously wide, but the engine was in fact only 25 mm wider than the 750, and 50 mm longer. Remarkably, the footrests were 60 mm closer together. Laying the engine forward meant a normal sized fuel tank could be used, meaning that the rider’s legs were not forced out and around the top of the engine. The carbs were angled inwards in a v-pattern to further enhance the riding position. Sitting on the CBX, the impression was of a very conventional machine. The lower engine was in fact only as wide as the crankshaft, as the alternator and ignition unit were driven by a jackshaft at the upper rear of the crankshaft. To prevent damage to the jackshaft as engine revolutions increased, or more importantly rapidly decreased, the heavy alternator drive is cushioned by a spring-tensioned friction clutch. A Hy-Vo chain ran from the centre of the crankshaft to the exhaust camshaft in the head, with a shorter chain coupling it to the inlet camshaft. Tappet adjustment, like the GS Suzuki and Z1 Kawasaki, was by buckets and shims. An accelerator pump in the number three carburettor fed all six, while the air cut-off valve on number one did likewise. With three pairs of crankshaft throws spaced at 120º, one power stroke was always in progress, giving a remarkably smooth-running engine and eliminating the need for virtually any crankshaft bob-weights.

The gearbox was virtually the only area with any similarity to the 750, being essentially a beefed up version of the standard five-speeder. A massive 13-plate clutch was needed to transfer the power.

A few journalists were lucky enough to test the pre-production models at the Honda-owned Suzuka race track following the press conference in 1977, and all came away flabbergasted. The overwhelming sentiment was that the CBX, which at first glance, looked ridiculously monstrous and ungainly, at least in the engine department, was actually a supremely comfortable, well mannered, fine handling and practical motorcycle, that indisputably oozed panache. It was an instant classic, an absolute traffic stopper, king of the kids and king of the road.

Jim Merrick’s own stainless mufflers are correct down to the condensation release hole on the end caps.

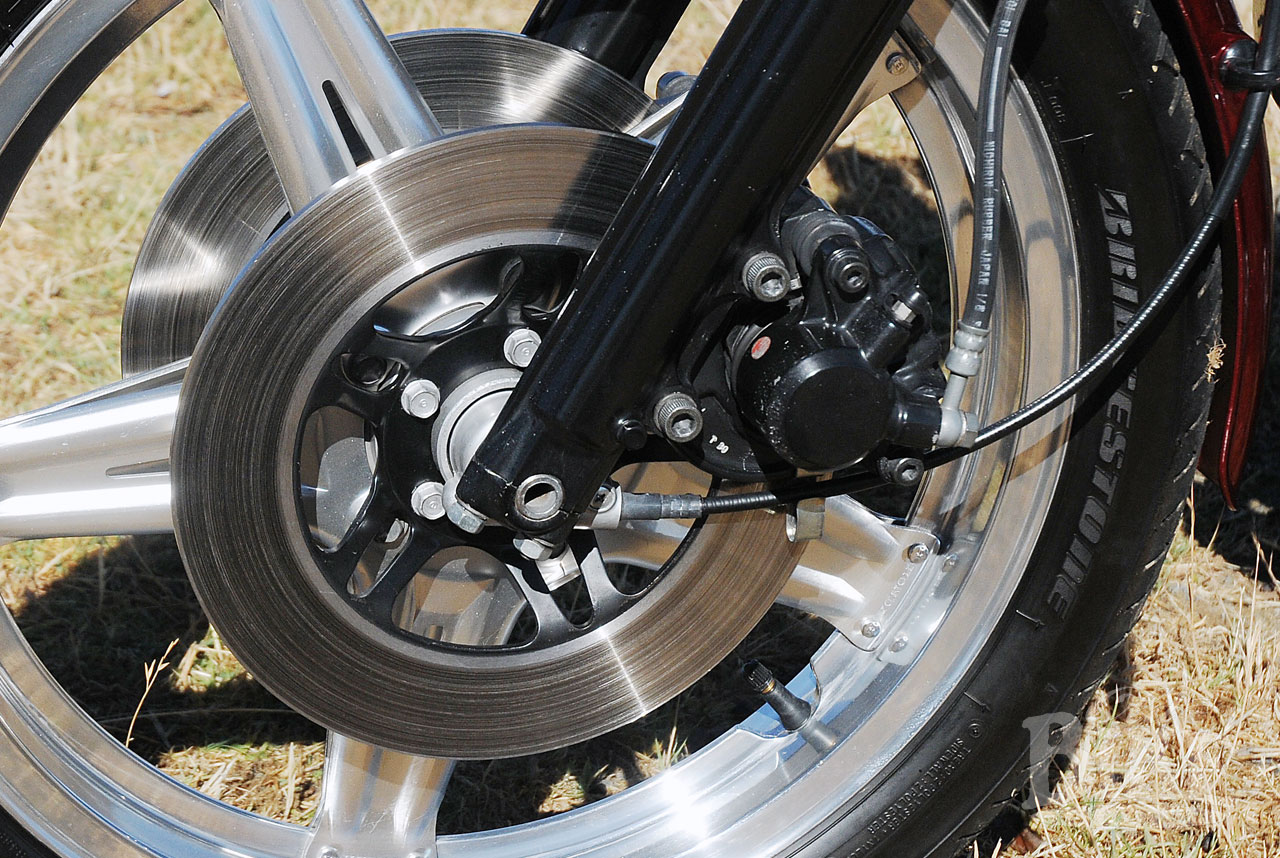

Doing away with the full-cradle frame saved a heap of weight – the triple-backbone job weighed a mere 12 kg. Honda’s Comstar wheels – five pressed aluminium ‘spokes’ formed in two sections and riveted to an alloy rim that had first been seen on the CB750F2 – were employed on the CBX, with the later models having the “reverse Comstar wheels” with the “spokes” facing outwardly. Up front, a pair of single-piston brake callipers did only a reasonable job of arresting progress – the single calliper rear brake was much more effective. The F2-style 35 mm front forks had no external adjustment, but the rear shocks had five-position pre-load adjustment, two settings for compression damping and three for rebound.  In comparison to the massive donk, the CBX’s rear tyre looked positively scrawny, but with only a 2.15-inch rear rim, a 4.50 x 18 was the biggest rubber that would fit.

Merrick’s own stainless mufflers are correct down to the condensation release hole on the end caps.

As shipments began to arrive in Australia in late September, magazines queued up for test rides. It was the beginning of an all-out horsepower war between the Japanese factories, as the CBX was ranged against the Kawasaki Z1B, the porky but pokey Yamaha XS1100, and perhaps the best all-round package, the Suzuki GS1000. But in terms of sheer jaw-dropping presence, the CBX stole a march on the competition, and in at least one area, the all-important exhaust note, it was no contest. Once stirred into action, the CBX emitted a turbine-like howl, which became a shriek when the various after-market exhaust systems began to come into play. Everyone seemed to like the accessories like the red-faced instruments, forged aluminium handlebars which clipped onto the upper sections of the fork legs and were fully adjustable. At $4,250 the CBX was competitively priced and the quickest thing in a straight line, straight out of the box.

Oil cooler is tucked out of the way.
Left: Although the engine is wide, the riding position is not compromised. Right: Attractive instrument cluster with red illumination.

And yet, for all its charisma, the CBX didn’t really catch on to the extent that Honda had undoubtedly anticipated. Its sheer presence was perhaps just too imposing for many, and in terms of machines of comparable performance, there were plenty of options in the marketplace.

After two years of relatively average sales, Honda decided on a revamp of the model, abandoning the outright performance category and slotting the CBX into the so-called Sport/Touring ranks. It had already taken a step in this direction in the USA with the CBX-A, which was very similar to the original CBX-Z but with higher handlebars, different footrest brackets to allow the footrests to be moved further forward in ‘cruiser’ style, a ‘glove box’ with a key lockable opening in the rear dove tail and a detuned engine (with a 0.5mm lower lift inlet camshaft) to comply with newly-introduced legislation in the USA to limit the horsepower output of motorcycles to below 100bhp “in the interests of safety”. The A model also had needle roller bearings to replace the plastic bushes in the swinging arm with a larger diameter (16 mm) pivot bolt. Other changes included a smaller 530 rear chain to reduce drive-line snatch, thicker walls in the 35 mm fork tubes for greater rigidity and non-balanced air assistance, reverse-spoke Comstar wheels to reduce flexing and a wider (2.5 inch) rear rim.

Phil Mumenthaller’s nitrous oxide-injected and supercharged CBX.

The revamp certainly helped the CBX’s fortunes in the USA, but world wide the model still failed to win over buyers, and Honda’s answer was the CBX-B. It was much more than a cosmetic make-over, with a single shock rear end, which Honda called the Pro Link, replacing the conventional twin shocks. This gave a progressive rise in springing and damping rates as the wheel travel increased. The single shock was primarily air-sprung, with the coil spring there mainly in case of loss of air pressure, which was adjusted via a single valve on the side of the bike and had adjustable dampening. The beefier, 39 mm front forks received air caps with a balance tube between the two legs, and the front brakes were up-rated to thick, ventilated rotors with twin piston callipers. To change the handling characteristics, the steering head angle was altered to give 2º more rake (from 27.5º to 29.5º) although the trail remained at 120 mm through the use of new steering crowns with more offset. A rather bulbous half-fairing enshrouded the front end, while the rear mudguard was also deeply valanced in BMW style. Matched panniers were available as an optional extra.

‘The Beast’: Roland Skate’s racing CBX in its early form.

New cams with higher lift than the 1980 models (but not as high as the original “Z” models) and differing durations improved mid-range flexibility at the expense of top-end performance. A balance pipe behind the collector boxes joined the two exhaust systems and further increased torque, if marginally. By reducing the down-draft on the bank of CV carburettors, better low-speed running and idling was achieved. The result was a slight reduction in horsepower, to 100, and a hefty increase in weight; from 249 kg to 270. The extra beef came from the practical all-weather fairing, larger diameter forks, stronger wheels and bigger, more efficient brakes. Nevertheless, the B was an excellent package for the touring rider.

Sadly for Honda, the ploy again failed to tempt customers, despite a final revamp (the CBX-C) which was essentially the same except for a handrail at the back of the seat, and a snazzy white and blue colour scheme. In the US, Honda had so many unsold models at the end of 1981 that they donated over 200 brand new CBXs to Technical Colleges across the country, ostensibly for prospective motorcycle mechanics to tinker with. Most of these bikes never had a spanner laid on them – some were even dismantled and thrown out as waste.

C model CBX with matching luggage.

The “Prolink” models, whilst not as “collectable” as the original “Twin Shocks”, still have a loyal following world wide and are a much better touring package than the Twin Shocks, offering better weather protection, increased braking capability,  improved rider and passenger comfort due to the improved suspension and the optional OEM pannier bag arrangements. Another optional nicety was the altimeter which indicated the height above seal level at which you were riding.

The final run of the CBX happened in late 1982, so just four years accounted for the model’s lifespan.

Ernie James on his twin shock CBX.

Track attack

At the time of the release of the CBX, Australia and New Zealand were in the grips of a Production Racing explosion, with the Castrol Six Hour Race in both countries as the grand finale after a season of lead-up contests. In both the 1978 Adelaide Three Hour and the Perth Four Hour, the victor was the Yamaha XS1100 in the hands of diminutive South Australian Greg Pretty, while the prospective Honda runners cooled their heels awaiting the new six. Just in time for the Calder Two Hour on August 23, the Victorian Honda Team got its hands on an air-freighted CBX and stuck the relatively unknown Mick Cole on it. The Calder layout was tight, but it had two straights worthy of the name, and the CBX fairly ate them up. After qualifying second behind Alan Decker’s Suzuki GS1000, Cole leapt into the lead from the Le Mans start and stayed there, surviving the almost inevitable post-race squabble over lap scoring to be declared the winner by a full lap over Jim Budd’s Suzuki – a world debut win for the big six. One of the existing CBX Owners Club Members and Newsletter Editor,  Ed  “Yoshi” Trathen, was racing  a GS1000 Suzuki in this particular race and can still distinctively recall the way in which the CBX s overtook him on the straights “like he was standing still”.  As well as outright speed, one of the Honda’s major advantages was the amazing ground clearance, particularly with the centre stand removed for racing. Unlike its competitors, nothing scraped.

Mick Cole guns his CBX up Bitupave Hill during
the Castrol Six Hour Race in 1978.

A few weeks later, Pretty and the XS1100 resumed their place at the top by beating the Cole/Dennis Neill CBX at Surfers Paradise, and then it was on to Amaroo Park for the real contest – the Castrol Six Hour. Here the CBX faced additional hurdles. The rear wheel, should it need to be changed, was difficult and slow to remove and refit, unlike the shaft-drive Yamaha. Perhaps more important was the engine’s thirst – when pushed hard, less than 20 miles per gallon was likely.

As well as the Cole/Neill combination, the CBX ranks at Amaroo were boosted when Team Honda managed to grab the exciting Kiwi Graeme Crosby to partner Tony Hatton. Crosby responded by grabbing pole position by almost half a second but the race was a disaster. Only minutes into the event, Crosby was in the pits complaining that the CBX was nipping up, although the mechanics spent precious time examining the rear brake before sending him out again. He was back soon after shaking his head, and Hatton took the bike out, getting into a huge slide at the top of the hill when the rear wheel locked. Back in the pits, the CBX was retired – the ever-diplomatic Hatton telling the assembled media that the problem was faulty fuel, a story that not everyone swallowed. Meanwhile, Cole and Neill were making steady progress, hitting the lead by half-race distance. But their rear tyre cried enough with 90 minutes still to run, and the pit stop to change it was a shocker, dropping the team to fifth, which became third at the finish after a spirited final session by Cole.

A year is a long time in racing, particularly Production Racing, and by the time the 1979 Castrol Six Hour rolled around, the CBX was well out of fashion, with Honda runners opting for the new CB900F that had been launched earlier in the year.

Loyal locals

Today, the CBX is more popular than it ever was in its heyday and is no doubt one of the most collectable of all the Japanese bikes and are ever increasing in value through out the world. The annual CBX Owners Club Rally, first held in the early 1990s, these days alternates between states. In 2008 it was held at Bribie Island Qld, and in 2009 was held in and around Bathurst NSW, with much of the organization done by local resident and CBX club president Jim Merrick. Jim has owned his immaculate CBX-Z (featured in this story) since 1980, after purchasing it with 10,000 on the clock from Mentor Motorcycles in Sydney. “It came with a locally-made bikini fairing and 6-into-2 Walker exhaust, which looked too small in the mufflers, but sounded great,” Jim says. He soon procured a set of original mufflers, but was dismayed just how quickly they rusted out. It’s a problem that confronts all CBX owners–, the cost of constantly replacing the mufflers and the increasing difficulty in finding NOS originals. Being an expert metal worker, he decided to make his own – in stainless steel – to cure the problem forever. The complete internal system was replicated in stainless, the outer covers rolled in 1 mm sheet in two sections then polished and butt-welded together, and the end caps turned in stainless from a solid bar down to 1.5 mm thick by Jim’s cousin Ken Lindsay (of Bucket Racing fame), complete with the distinctive hole to allow condensation to escape from the baffles. The result is stunning, indistinguishable from the original, and permanent. Jim’s bike was restored back to its former glory in the early 1990s, which included completely dismantling the frame down to the last nut & bolt, grit blasting, repainting & reassembling. The fuel tank, front mudguard and rear dovetail are genuine Honda replacement parts, supplied already painted. The alloy components were stripped of the original lacquer and repolished, the bulk of this work being done at home by Jim. He has also had a hand in tuning and rebuilding several other CBXs, including ‘The Beast’ – Roland Skate’s awesome racer that has had considerable success of late, (but at the time was a far less competitive machine than today’s version) and has drag-raced his own CBX at the long-defunct Castlereagh strip in western Sydney.

Mark May on his CBX-C.

Jim is a big fan of the CBX engine. “Over the thirty years of the machines’ existence the six cylinder engine configuration has proven very durable and reliable, providing the engines have been run on good quality clean oil and have not been interfered with by incompetent spanner heads. Many of the current bikes in existence have done well over the 100,000 km mark without the need for any major work and a few have reached the 200,000 milestone. My bike has done near on 80,000 km with the top end never being apart.”

The 2009 CBX Owners Club Rally attracted 22 CBXs and a host of other interesting machines ranging from a tiny H100 Honda two stroke road bike through to a couple of massive Z1300 6-cylinder Kawasakis, and over 70 people, with the rally based at the Big Four Caravan Park in Bathurst. Contestants and interested on-lookers came from far and wide; Fred Meli rode his CBX from Perth, Phil Mumenthaler, who built a rip-snorting supercharged, nitrous oxide-gulping CBX dragster came from Kununurra, south west of Darwin “just for a look”, while John and Maud Duffy trailered their white CBX-C from Bundaberg. Others arrived from Brisbane, Newcastle, Wollongong and Victoria. The rally was held over three days, with Friday set over to a sports afternoon of golf and bowling and the obligatory welcome barbeque. Saturday naturally included a couple of laps around Mount Panorama and a visit to the National Motor Racing Museum, followed by a 180 km ride to Abercrombie Caves and back before the fancy-dress dinner at the caravan park. Sunday’s run covered a similar distance, this time in the opposite direction over the wonderful roads linking Oberon, Shooters Hill, Black Springs, Burraga and Rockley. Jim says a highlight of the weekend was the superb lunches provided by the Black Stump Hotel at Trunkey Creek on the Saturday and the Burraga Sports and Recreation Club on the Sunday. After a farewell breakfast on Monday, everyone went home in various directions vowing to meet again for the 2010 rally.

Left: Rhapsody in blue. Garry May’s highly individual CBX-B sports a plumber’s nightmare 6 into 1 exhaust system. Right: Rini Zysvelt’s 6-into-6 exhaust system plays nice music.

The CBX-6 Owners Club of Australia Inc. was formed in 1991 and has predominantly enjoyed strong support and friendship among its 180 Members, throughout all states of Australia, having representatives in all states as contact people and a strong and knowledgeable Committee.  “There is a wealth of support and knowledge among the members and for those people contemplating becoming “owners”, I strongly suggest you get in contact with the club to give you some very valuable advice and knowledge of the machines – before you lash out,” says Jim.  “As with all bikes there are some good ones to be bought and there are some shockers, which inevitably become horror stories with very, very, expensive outcomes.” For more info on the Club visit:

A brief gallop

The weather was perfect, the country roads empty, so following our photo session at Jim Merrick’s property south of Bathurst, I wasted no time in accepting Jim’s invitation to have a ride on his immaculate and perfectly tuned CBX-Z. As mentioned previously, all thoughts of straddling an elephant disappear the instant you swing a leg over this beauty. Apart from the tips of the cam boxes poking out in the breeze, well forward of your knees, this feels no different to any other large-capacity Japanese bike of the era. I have owned two of the later CB900F models (a machine I rate very highly) and the CBX is definitely out of the same mould. The riding position is a tad sporty, with the footrests set to the rear and the handlebars given just enough rise to permit a forward weight bias. There in front of you is the impressive instrument cluster – black faced with red numerals – speedo to the left, tacho to the right, and the little voltage meter below in the middle. A cluster of small lights including turning signals, high beam, neutral and oil pressure complete the attractive dashboard.

Jim Merrick enjoying himself on the mountain roads near his home.

Turn the key and the engine spins quickly into life, although there is so little vibration only the exhaust note tells you the motor is actually running. “There’s not much below 6,500 rpm,” warns Jim, “but after that it really gets going”. He was dead right. Taking it easy on the long gravel driveway leading onto the sealed road, the CBX idled along in perfectly ordered manner. I eased it up through the gears, getting the feel of the machine, and testing the brakes, which, predictably, I found to have a similar only-just-adequate feel that my first CB900F exhibited. I tried the anchors a couple more times through the twists and concluded that probably I was being a bit unfair – they really do their job quite satisfactorily and I guess my memories of the 900’s shortage in this department came from racing experiences in the 1979 Adelaide 3 Hour and at Bathurst – which is the ultimate test for any braking system.

By now I was a few kilometres out and the road straightened out with a clear view for quite a way ahead. Right, time to see what it’s really like. Just a twist of the wrist provided the answer. Once the magic 6,500 rpm was on the clock, the CBX fairly takes off, emitting the most glorious howl from the pipes as it soars towards 9,500. I am sure it would happily soar beyond that, but the road was disappearing beneath me at a rapid rate so it was time to cool it. Whistling around the next left-hander the CBX felt rock-solid in the front end, and although the rear felt a bit harsh over some bumps the whole plot remained stable and in complete harmony with the environment. I have not ridden the later B and C Pro Link models, but from what Jim tells me they are nowhere near as ‘sporty’ as the Z, but are more rider friendly for the long hauls. All too soon, the test flight was over and it was time to return the machine to its owner, but the experience made me hungry for more – a truly impressive motorcycle that simply oozes character.

1978 Honda CBX 1000Z Specifications

Engine: 1,047 cc (64.5 x 53.4 mm bore & stroke) double overhead camshaft in-line six, four valves per cylinder.
Seven plain main bearings, plain big end bearings.
Wet sump with 5.5 litre capacity.
9.3:1 compression ratio.
Six 28 mm Keihin CV carburettors.
105 bhp at 9,000 rpm.
Transmission: Morse-type chain to countershaft. Spur gears to wet multiplate clutch, five-speed gearbox.
Electrical: CDI ignition. 12-volt, 240-watt alternator, electric starter motor.
Brakes: Twin 275 mm front discs, single 300 mm rear.
Dimensions: 1498 mm wheelbase, ground clearance 19 cm, kerb weight 253 kg including 5 litres fuel.
Fuel capacity: 20 litres.
Performance: Top speed 225 km/h.
Standing Quarter mile: 11.75 sec/187 km/h

OBA Issue 18
This article first appeared in Old Bike Australasia Issue No.18
